PhotonRek Extention Cables

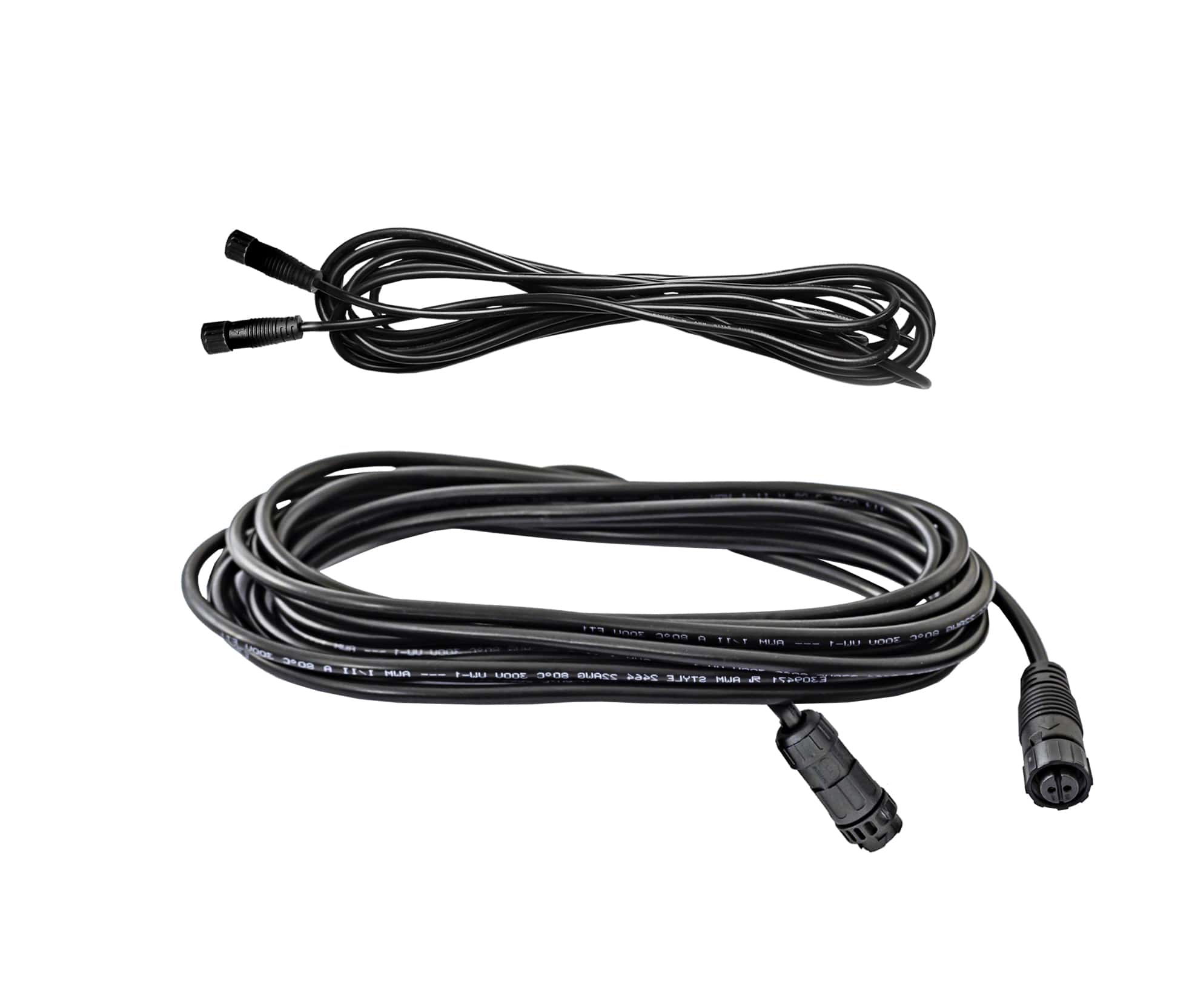

These two 5m long Extension Cables are designed to connect the PhotonTek driver and LED fixture, in case the driver is used remote and away of the fixture. Allowing a stable and precise connection without any interference these product is composed by 2 elements:

• Withstand voltage between any two poles is 500 VAC, 2mA, test time 3S, no breakdown or leakage current occurs
• The withstand voltage between outer cover and electrode is 500 VAC, 2mA, test time is 3S, no breakdown or leakage current occurs
• Insulation Resistance:100MΩ@100V
• Temperature Resistance：105℃
• Working temperature: -20℃-105℃
• Storage temperature: -25℃-105℃
• IP65
• Comply RoHS

5m Extension Dimming Cable for LED driver: M19-2 Self-locking male and female injection molding with 5m extension cable (Wire Gauge: UL 21996 3×22AWG 300V 105℃ VW-1

Technical/Test Data:

• Withstand voltage between any two poles is 500 VAC, 1mA, test time 3S, no breakdown or leakage current occurs
• The withstand voltage between outer cover and electrode is 500 VAC, 1mA, test time is 3S, no breakdown or leakage current occurs
• Insulation Resistance:100MΩ@100V
• Temperature Resistance：105℃
• Working temperature: -20℃-105℃
• Storage temperature: -25℃-105℃
• Comply RoHs
